Reflex Dynamic Range Meter

Monitor your dynamic range across the frequency spectrum.

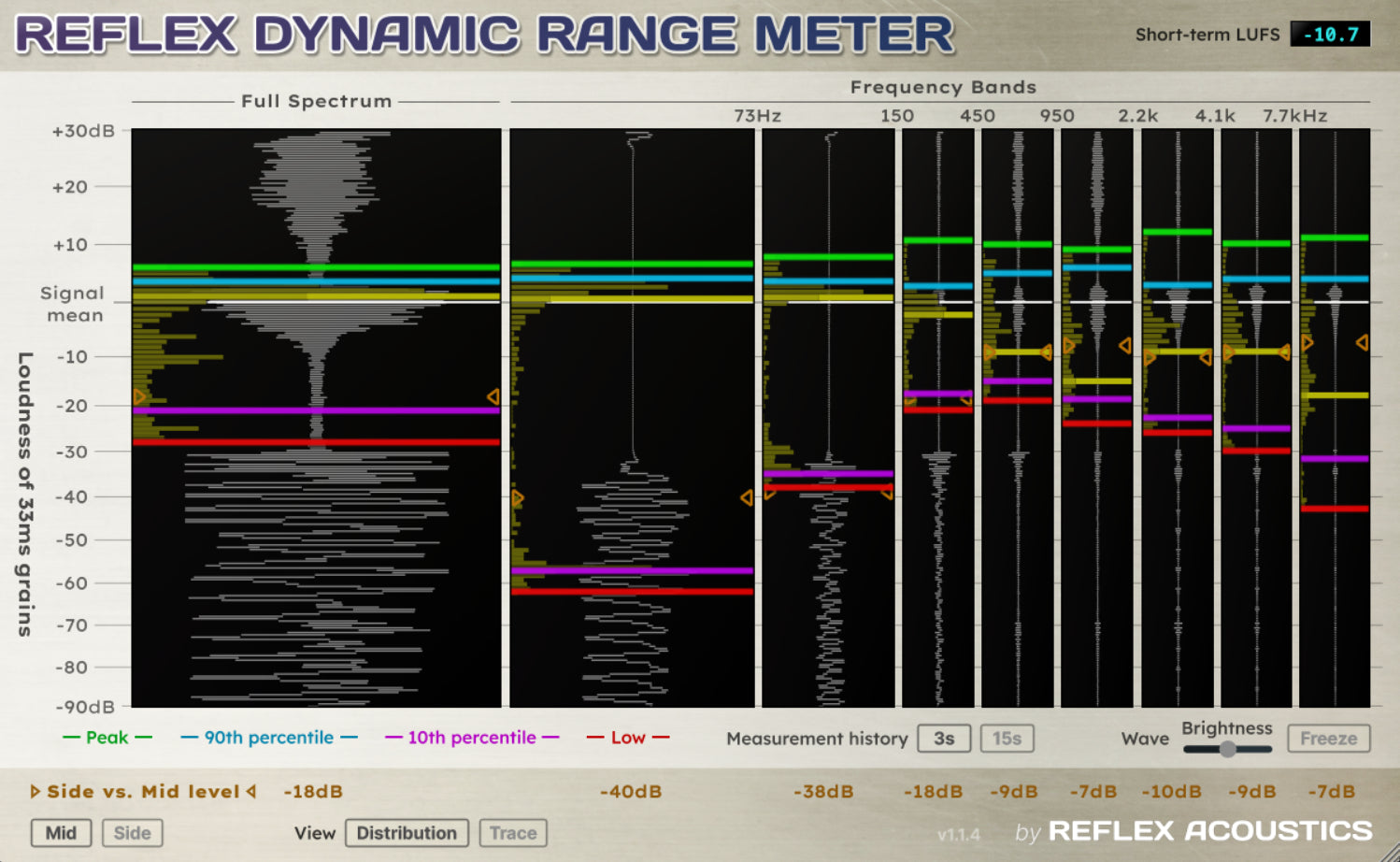

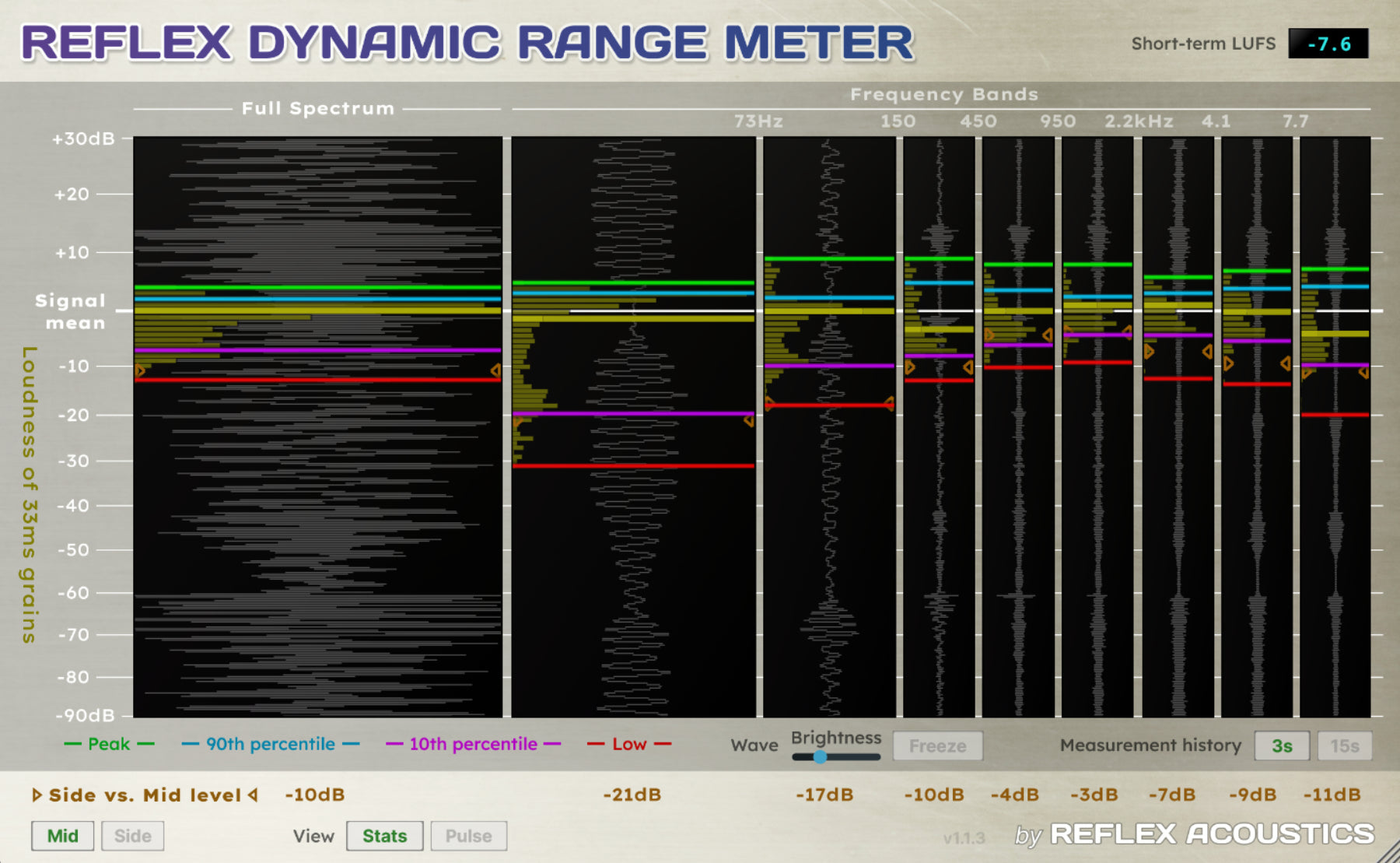

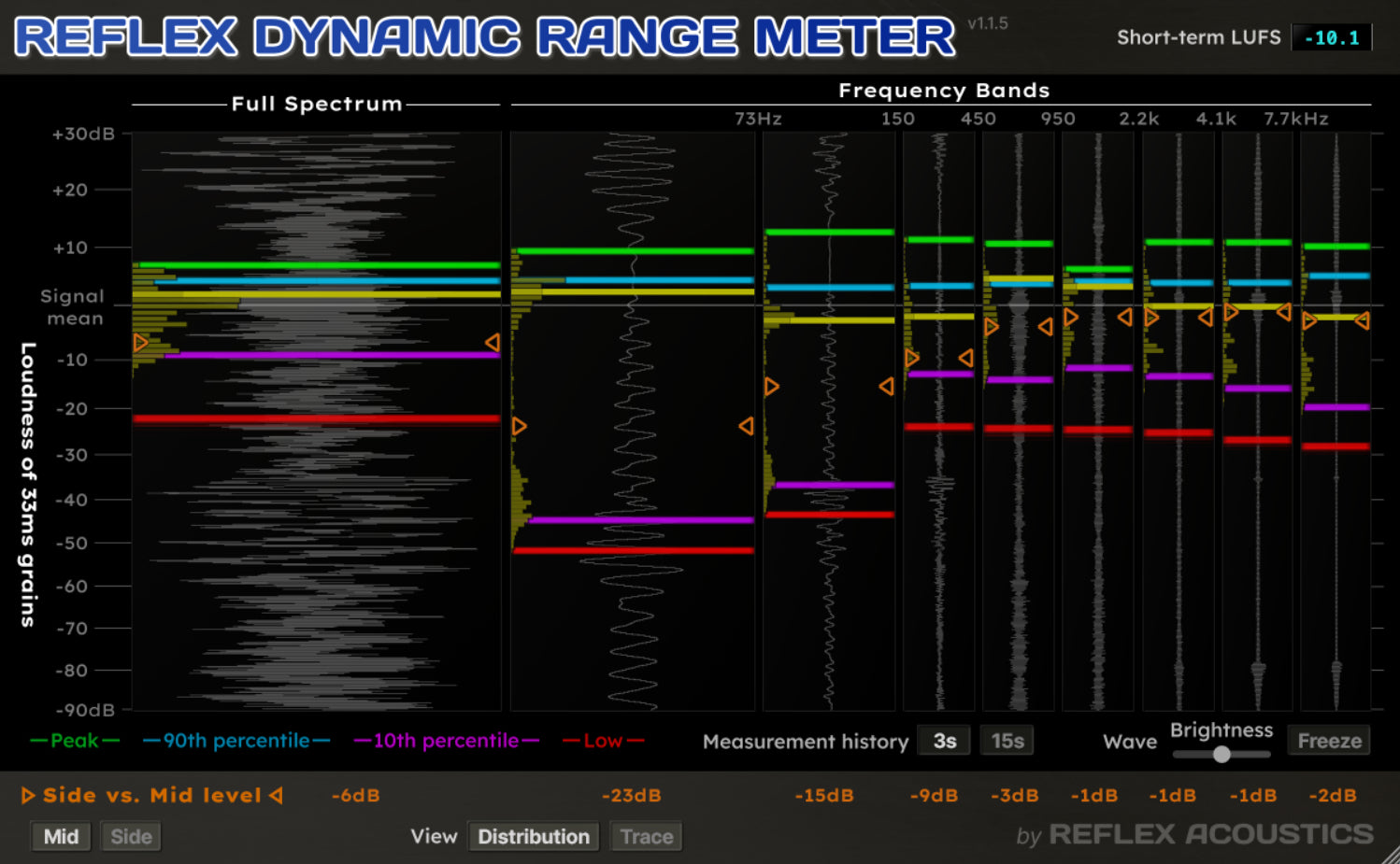

The Reflex Dynamic Range Meter helps you visualize the dynamics in your signal, by showing the real-time loudness distribution of grains of sound.

The spectrum is also broken up into eight frequency bands, each with its own analysis display.

Features

• Loudness distribution of 33ms grains over the last 3 or 15 seconds, charted relative to mean loudness
• Colored bars for Peak (green), 90th percentile (blue), 10th percentile (pink) and Low (red)

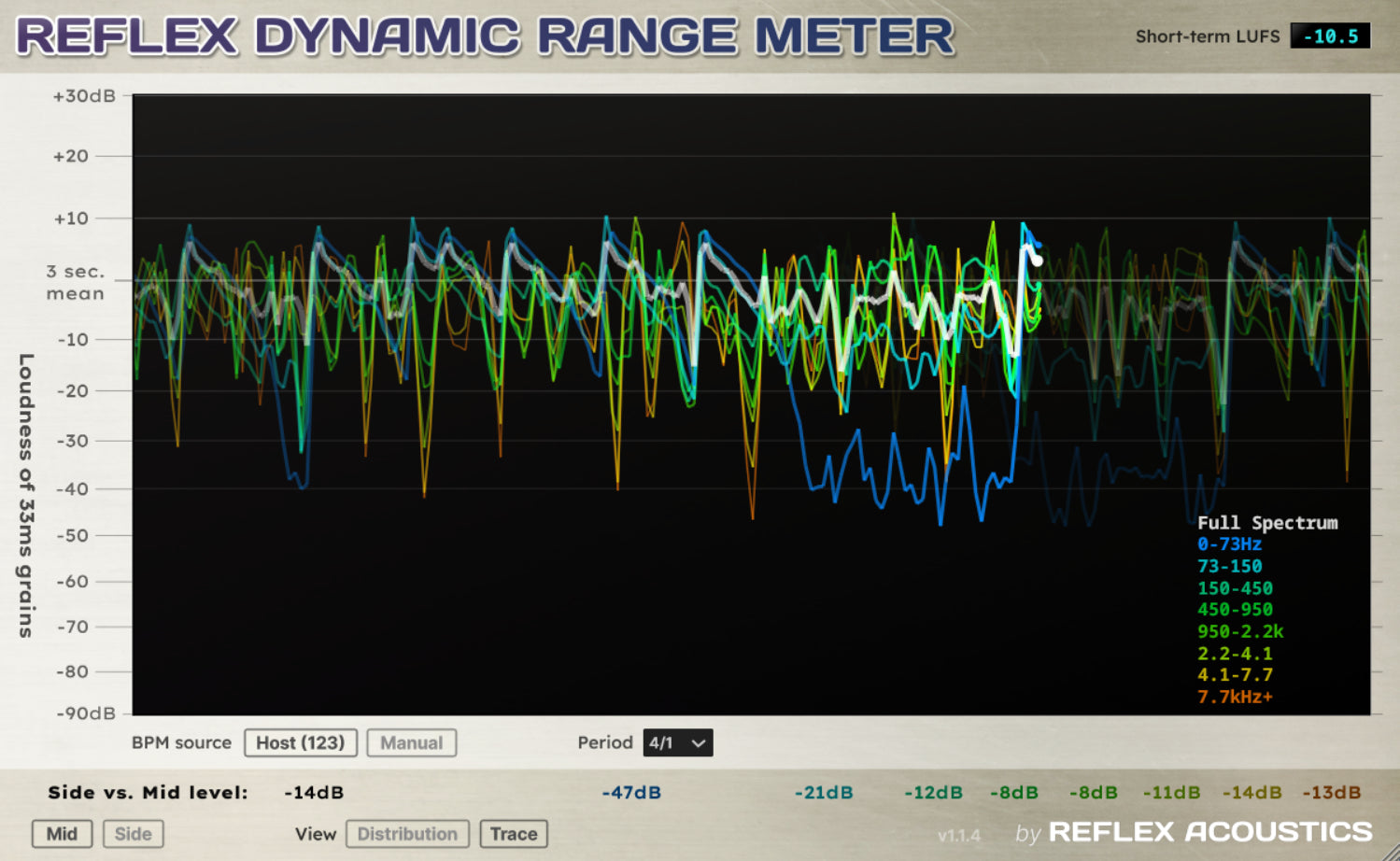

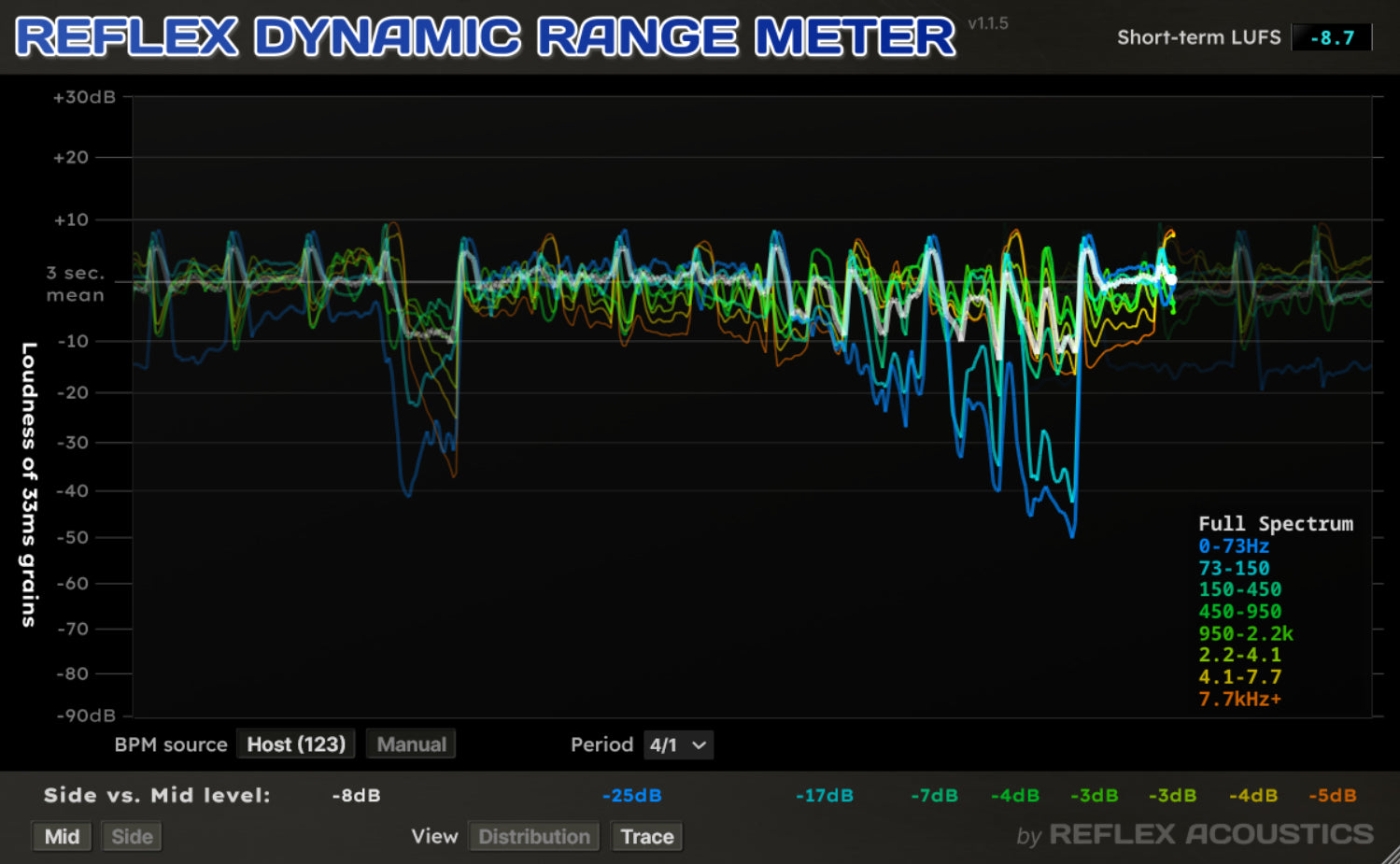

• Scrolling waveform display of last ~1 second, at 3-millisecond resolution (click display to freeze waveforms, which also turns them off if no audio is playing)
• Mid and Side modes, and a readout of side level relative to mid for each frequency band

• LUFS meter showing short-term (i.e. 3-second trailing) perceived loudness
• Two filter modes: "Eco." is lighter on CPU, but introduces visible artifacts in the waveform displays for the eight frequency bands; Linear Phase ("Lin.") has a very clean band separation, albeit with variable latency across the lower-frequency bands, meaning that transient peaks no longer align across the displays

Technical notes

• Available in VST3 format for PC, and VST3 & AU formats for Mac. AAX support coming soon
• Requires a compatible Digital Audio Workstation or other plugin host
